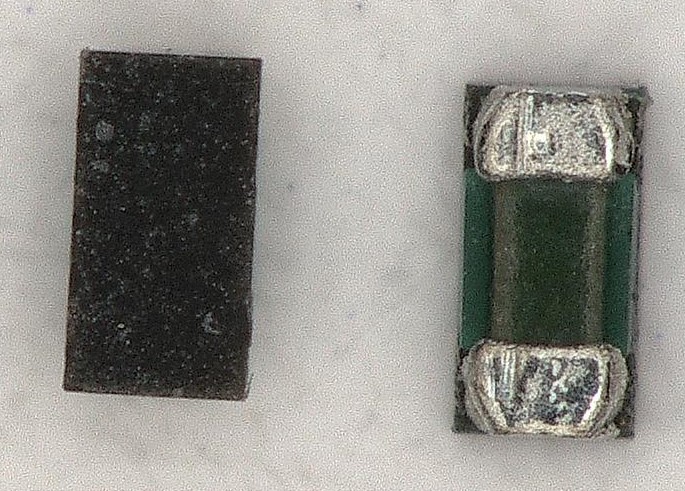

LPC0201 Series

Description

Our LPC0201 is a high current jumper in a small 0201 case size.

Features

RoHS compliant, Lead free, AEC-Q200, Anti-Sulfur

Electrical Characteristics

Resistance Range

0 ohms

TCR

Tolerance

Power Ratings

Mechanical Characteristics

Construction

Current Sensing, Metal Foil

Case Sizes

0201

Number of Terminals

2 Terminal

Electrode Style

Non-wrapped
