CPC0306

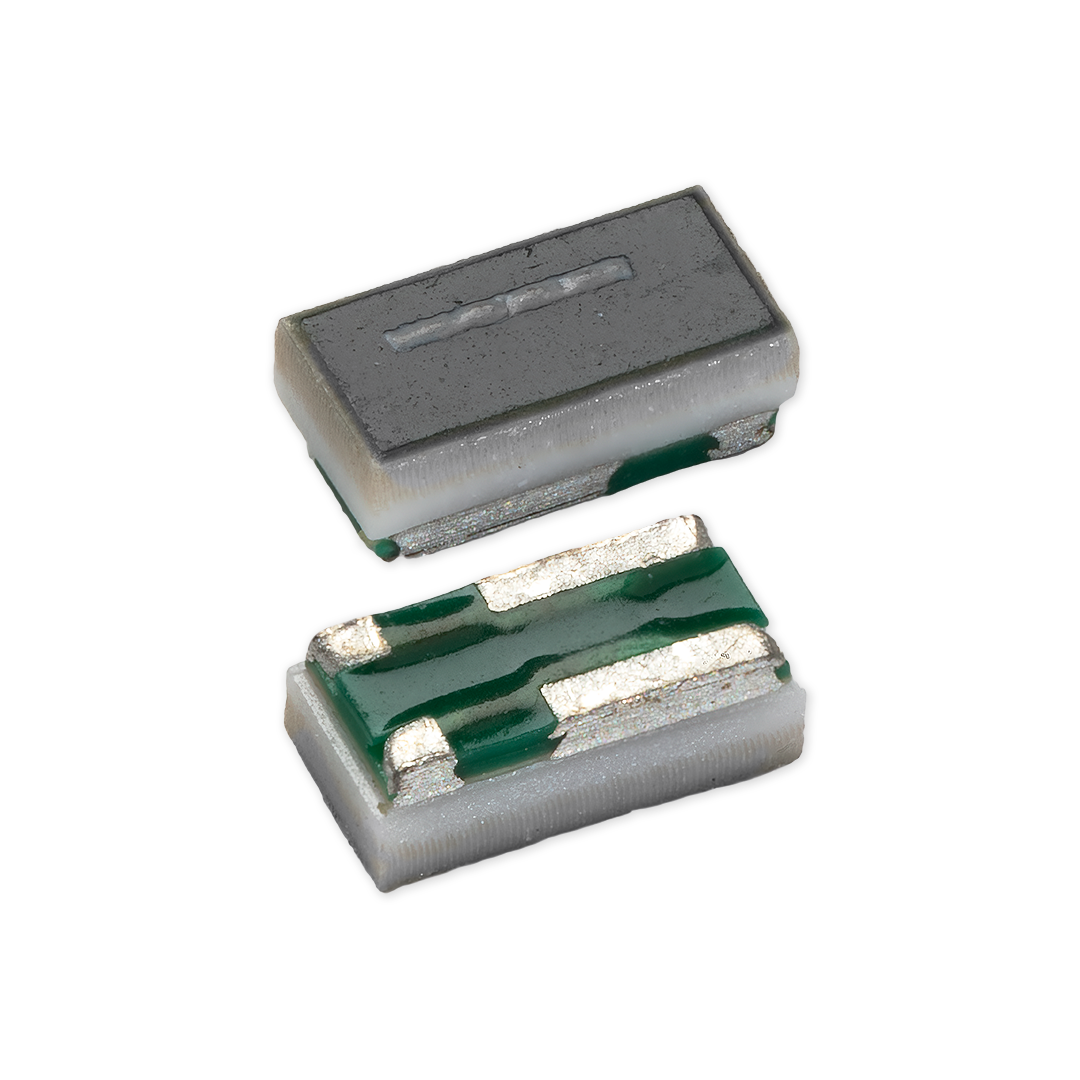

4 Terminal Long Side Electrode Current Sense Resistors
Our CPC series, with a 4-terminal layout, ensures highly accurate measurements by reducing lead resistance effects, surpassing traditional 2-terminal resistors. It offers ultra-low resistance values from 1 to 50 milliohms, crucial for minimizing power loss in critical applications. Its 4-terminal Kelvin structure enables precise current sensing, making it ideal for accurate measurements in consumer electronics, servers, IoT devices, telecommunications, lighting, heads-up displays, and infotainment systems.

Characteristics

Composition

Metal Foil

Resistance Range

1 mOhms - 50 mOhms

Case Size(s)

0306

Power

0.333W

Terminals

4

TCR

±50ppm/°C, ±100ppm/°C, ±150ppm/°C

Features

Anti-Sulfur

Current Sense

Tolerance

±0.5%, ±1.0%

Datasheet

CPC0306 Series Specification*

*Please review specification for available values within range.

Resources

Visit our resources page to learn more about out products and offerings. Access application notes, research publications, and product profiles here.

Buy from a Distributor

This product is available for purchase from distributors as the D1CPC0306 series. Buy on DigiKey today!
CPC0306
4 Terminal Long Side Electrode Current Sense Resistors
Our CPC series, with a 4-terminal layout, ensures highly accurate measurements by reducing lead resistance effects, surpassing traditional 2-terminal resistors. It offers ultra-low resistance values from 1 to 50 milliohms, crucial for minimizing power loss in critical applications. Its 4-terminal Kelvin structure enables precise current sensing, making it ideal for accurate measurements in consumer electronics, servers, IoT devices, telecommunications, lighting, heads-up displays, and infotainment systems.

Characteristics

Composition

Metal Foil

Case Size(s)

0306

Terminals

4

Resistance Range

1 mOhms - 50 mOhms

Power

0.333W

TCR

±50ppm/°C, ±100ppm/°C, ±150ppm/°C

Tolerance

±0.5%, ±1.0%

Features

Anti-Sulfur

Current Sense

CPC0306
4 Terminal Long Side Electrode Current Sense Resistors
Our CPC series, with a 4-terminal layout, ensures highly accurate measurements by reducing lead resistance effects, surpassing traditional 2-terminal resistors. It offers ultra-low resistance values from 1 to 50 milliohms, crucial for minimizing power loss in critical applications. Its 4-terminal Kelvin structure enables precise current sensing, making it ideal for accurate measurements in consumer electronics, servers, IoT devices, telecommunications, lighting, heads-up displays, and infotainment systems.

Characteristics

Composition: Metal Foil
Case Size(s): 0306
Terminals: 4
Resistance Range: 1 mOhms - 50 mOhms
Power: 0.333W
TCR: ±50ppm/°C, ±100ppm/°C, ±150ppm/°C
Tolerance: ±0.5%, ±1.0%

Features:

Anti-Sulfur

Current Sense

Datasheet

CPC0306 Series Specification*

*Please review specification for available values within range.

Buy from a Distributor

This product is available for purchase from distributors as the D1CPC0306 series. Buy on DigiKey today!
