MPA
High Power Current Sense Resistors

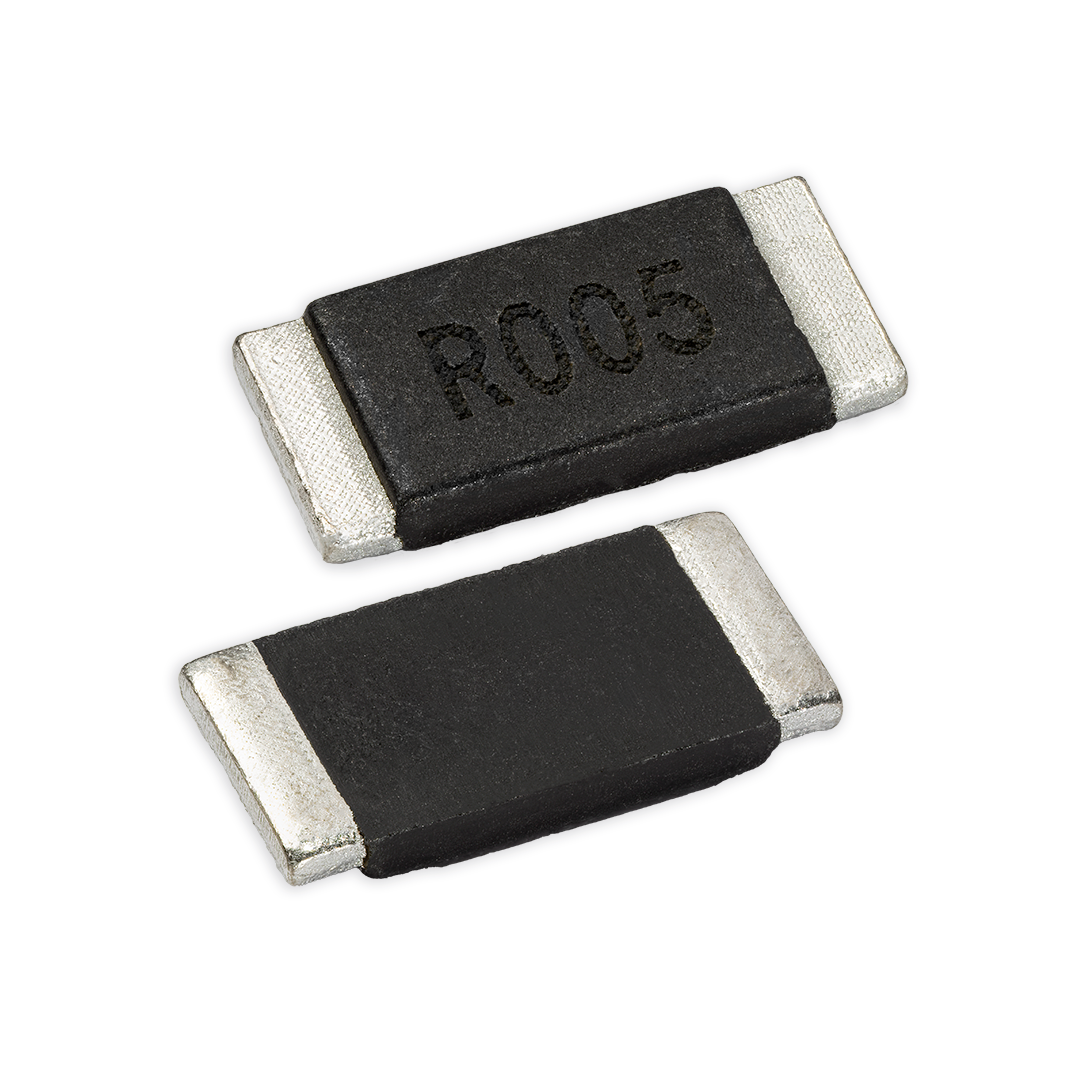

Our MPA series, a metal plate current sensing resistor, excels in automotive and industrial sectors with high-wattage needs. AEC-Q200 certified options are available, crucial for demanding automotive applications, offering precise current monitoring for voltage regulation and power management systems. With large-scale availability, these resistors provide consistent, cost-effective solutions. It also stands out as a versatile option for automotive, industrial, automation, and consumer electronics designs.
Characteristics
Composition
Metal Element
Resistance Range
0.5 mOhms - 56 mOhms
Case Size(s)
1206, 2512
Power
1W, 2W, 3W
Terminals
2
TCR
±50ppm/°C, ±75ppm/°C, ±100ppm/°C, ±150ppm/°C
Features
Anti-Sulfur
Current Sense
Tolerance
±0.5%, ±1.0%
Datasheet
*Please review specification for available values within range.
Resources
Visit our resources page to learn more about out products and offerings. Access application notes, research publications, and product profiles here.
Buy from a Distributor
This product is available for purchase from distributors as the D1MPA series. Buy on DigiKey today!
MPA
High Power Current Sense Resistors
Our MPA series, a metal plate current sensing resistor, excels in automotive and industrial sectors with high-wattage needs. AEC-Q200 certified options are available, crucial for demanding automotive applications, offering precise current monitoring for voltage regulation and power management systems. With large-scale availability, these resistors provide consistent, cost-effective solutions. It also stands out as a versatile option for automotive, industrial, automation, and consumer electronics designs.
Characteristics
Composition
Metal Element
Case Size(s)
1206, 2512
Terminals
2
Resistance Range
0.5 mOhms - 56 mOhms
Power
1W, 2W, 3W
TCR
±50ppm/°C, ±75ppm/°C, ±100ppm/°C, ±150ppm/°C
Tolerance
±0.5%, ±1.0%
Features
Anti-Sulfur
Current Sense
MPA
High Power Current Sense Resistors
Our MPA series, a metal plate current sensing resistor, excels in automotive and industrial sectors with high-wattage needs. AEC-Q200 certified options are available, crucial for demanding automotive applications, offering precise current monitoring for voltage regulation and power management systems. With large-scale availability, these resistors provide consistent, cost-effective solutions. It also stands out as a versatile option for automotive, industrial, automation, and consumer electronics designs.
Characteristics
Composition: Metal Element
Case Size(s): 1206, 2512
Terminals: 2
Resistance Range: 0.5 mOhms - 56 mOhms
Power: 1W, 2W, 3W
TCR: ±50ppm/°C, ±75ppm/°C, ±100ppm/°C, ±150ppm/°C
Tolerance: ±0.5%, ±1.0%
Features:
Anti-Sulfur
Current Sense
Datasheet
MPA Series Specification*
*Please review specification for available values within range.
Buy from a Distributor
This product is available for purchase from distributors as the D1MPA series. Buy on DigiKey today!
| Image | Series | Distribution Series | Description | Composition | Case Size(s) | Terminals | Minimum Resistance | Maximum Resistance | TCR | Tolerance | Power | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | WRL-L4 | D1WRL-L4 | 4 Terminal Symmetrical Footprint Current Sense Resistors | Metal Foil | 1206, 2512 | 4 | 0.5 mOhms | 100 mOhms | ±30ppm/°C, ±50ppm/°C, ±75ppm/°C, ±100ppm/°C | ±0.3%, ±0.5%, ±1.0% | 0.333W, 0.5W, 1W | View Series |
 | KN | General Purpose Thin Film Resistors | Thin Film | 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512 | 2 | 2.49 Ohms | 1.5 MOhms | ±10ppm/°C, ±15ppm/°C, ±25ppm/°C, ±50ppm/°C | ±0.1%, ±0.25%, ±0.5%, ±1.0% | 0.05W, 0.063W, 0.125W, 0.1W, 0.25W, 0.5W, 0.75W | View Series | |
 | CSA | D1CSA | Ultra-Low Resistance Current Sensing Shunt | Metal Element | 2512, 3921, 5931 | 2 | 0.2mOhm | 4mOhm | ±50ppm/°C, ±70ppm/°C, ±100ppm/°C, ±125ppm/°C, ±175ppm/°C, ±200ppm/°C | ±1.0%, ±5.0% | 2W, 2.5W, 3W, 4W, 5W, 6W, 7W, 8W, 9W, 10W, 15W | View Series |
| KN-A | Automotive Grade General Purpose Thin Film Resistors | Thin Film | 0402, 0603, 0805, 1206 | 2 | 4.7 Ohms | 1.5 MOhms | ±10ppm/°C, ±15ppm/°C, ±25ppm/°C, ±50ppm/°C | ±0.1%, ±0.25%, ±0.5%, ±1.0% | 0.063W, 0.125W, 0.1W, 0.25W | View Series | |
 | WEL | D1WEL | Long Side Wrapped Electrode General Purpose Current Sense Resistors | Metal Foil | 0508, 0612, 0815, 0830, 1020, 1225, 1530, 1836, 2043 | 2 | 0.5 mOhms | 100 mOhms | ±50ppm/°C, ±100ppm/°C, ±150ppm/°C | ±0.5%, ±1.0%, ±3.0% | 1W, 1.5W, 2W, 3W, 4W, 5W | View Series |
| WEL | D1WEL | Short Side Wrapped Electrode General Purpose Current Sense Resistors | Metal Foil | 0603, 0805, 1206, 2010, 2512, 4320, 4527 | 2 | 2 mOhms | 700 mOhms | ±50ppm/°C, ±75ppm/°C, ±100ppm/°C | ±0.5%, ±1.0% | 0.5W, 0.75W, 1W, 1.5W, 2W, 3W, 4W | View Series |
| WEL | D1WEL | Automotive Grade Short Side Wrapped Electrode Current Sense Resistors | Metal Foil | 0603, 0805, 1206, 2010, 2512 | 2 | 3 mOhms | 570 mOhms | ±50ppm/°C, ±100ppm/°C | ±0.5%, ±1.0% | 0.5W, 0.75W, 1W, 1.5W, 2W | View Series |
| WEL | D1WEL | Automotive Grade Long Side Wrapped Electrode Current Sense Resistors | Metal Foil | 0508, 0612, 0830, 1020, 1225 | 2 | 1 mOhms | 100 mOhms | ±50ppm/°C, ±100ppm/°C | ±0.5%, ±1.0% | 1W, 1.5W, 2W, 3W | View Series |
 | TFA | TFA | Automotive Grade Thick Film Resistors | Thick Film | 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512 | 2 | 1 Ohms | 10 MOhms | ±100ppm/°C, ±400ppm/°C | ±0.1%, ±0.5%, ±1.0%, ±2.0%, ±5.0% | 0.063W, 0.125W, 0.1W, 0.25W, 0.5W, 0.75W, 1W | View Series |
 | TFAS | TFAS | High Grade Anti-Sulfur Thick Film Resistors | Thick Film | 0201, 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512 | 2 | 1 Ohms | 10 MOhms | ±100ppm/°C, ±400ppm/°C | ±0.5%, ±1.0%, ±5.0% | 0.05W, 0.063W, 0.125W, 0.1W, 0.25W, 0.5W, 0.75W, 1W | View Series |
 | WKL | D1WKL | Non-Wrapped Electrode General Purpose Current Sense Resistors | Metal Foil | 0508, 0603, 0612, 0805, 0815, 0830, 1020, 1206, 1225, 1530, 1836, 2010, 2043, 2512, 4320, 4527 | 2 | 1 mOhms | 700 mOhms | ±50ppm/°C, ±100ppm/°C | ±0.5%, ±1.0% | 0.5W, 0.75W, 1W, 1.5W, 2W, 3W, 4W, 5W | View Series |
 | MPC | D1MPC | Low Profile Current Sense Resistors | Metal Foil | 0201, 0402, 0603, 0805, 1206 | 2 | 1 mOhms | 50 mOhms | ±50ppm/°C, ±75ppm/°C, ±100ppm/°C, ±150ppm/°C, ±200ppm/°C | ±0.5%, ±1.0% | 0.25W, 0.333W, 0.5W, 1W | View Series |
 | MPA | D1MPA | High Power Current Sense Resistors | Metal Element | 1206, 2512 | 2 | 0.5 mOhms | 56 mOhms | ±50ppm/°C, ±75ppm/°C, ±100ppm/°C, ±150ppm/°C | ±0.5%, ±1.0% | 1W, 2W, 3W | View Series |
 | KU | Low Ohms Metal Film Resistors | Metal Film | 0201, 0402, 0508, 0603, 0612, 0805, 1020, 1206, 1210, 1225, 2010, 2512 | 2 | 10 mOhms | 10 Ohms | ±50ppm/°C, ±100ppm/°C, ±150ppm/°C, ±200ppm/°C | ±0.25%, ±0.5%, ±1.0%, ±2.0%, ±5.0% | 0.005W, 0.05W, 0.063W, 0.125W, 0.1W, 0.25W, 0.2W, 0.4W, 0.5W, 0.75W, 1W, 1.5W, 2W, 3W | View Series | |
 | CPA0612 | D1CPA0612 | 4 Terminal Automotive Grade Long Side Electrode Current Sense Resistor | Metal Foil | 0612 | 4 | 0.5 mOhms | 25 mOhms | ±50ppm/°C, ±100ppm/°C, ±150ppm/°C, ±200ppm/°C | ±0.5%, ±1.0% | 1W | View Series |
 | CPC0306 | D1CPC0306 | 4 Terminal Long Side Electrode Current Sense Resistors | Metal Foil | 0306 | 4 | 1 mOhms | 50 mOhms | ±50ppm/°C, ±100ppm/°C, ±150ppm/°C | ±0.5%, ±1.0% | 0.333W | View Series |
| KGAS | High Grade Anti-Sulfur Automotive Grade Thick Film Resistors | Thick Film | 0402, 0603, 0805, 1206, 1210, 1218, 1812, 2010, 2512 | 2 | 1 Ohms | 10 MOhms | ±100ppm/°C, ±400ppm/°C | ±0.5%, ±1.0%, ±5.0% | 0.063W, 0.125W, 0.1W, 0.25W, 0.5W, 0.75W, 1W | View Series | |
 | CPA-W | CPA-W | 4 Terminal Long Side Electrode Current Sense Resistor | Metal Foil | 1225 | 4 | 0.5 mOhms | 25 mOhms | ±50ppm/°C, ±100ppm/°C | ±0.5%, ±1.0% | 2W | View Series |
