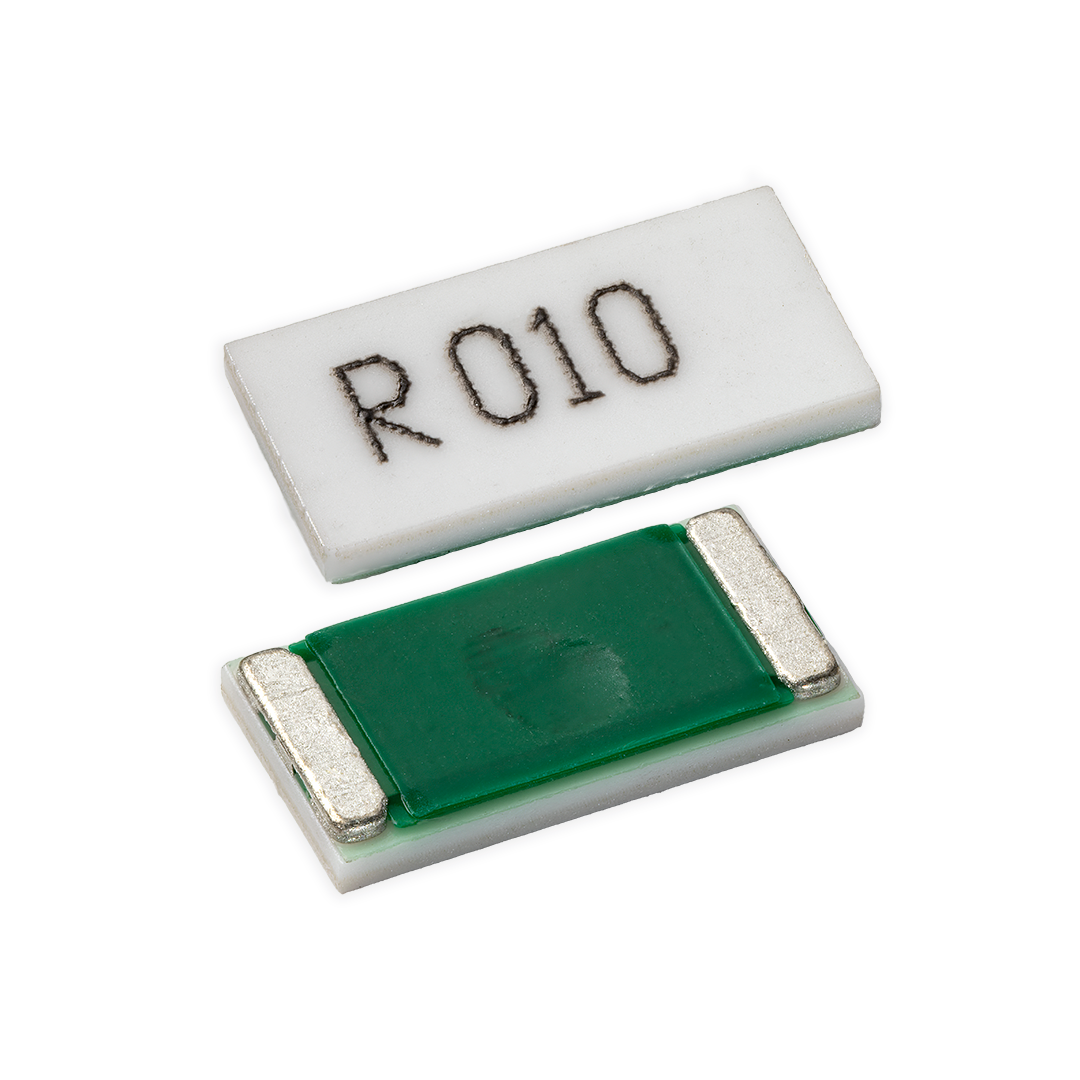

WKL
Non-Wrapped Electrode General Purpose Current Sense Resistors
Our WKL series, available in various sizes, excelling in heat dissipation, low noise, tight resistance tolerance, and long-term stability. Its high-power capacity suits power modules, DC/DC converters, and motor drive modules. Differentiating from our WEL series, its unwrapped electrode design maximizes PCB space, reduces noise, and offers both short-side and long-side electrode configurations.
Characteristics
Composition
Metal Foil
Resistance Range
1 mOhms - 700 mOhms
Case Size(s)
0508, 0603, 0612, 0805, 0815, 0830, 1020, 1206, 1225, 1530, 1836, 2010, 2043, 2512, 4320, 4527
Power
0.5W, 0.75W, 1W, 1.5W, 2W, 3W, 4W, 5W
Terminals
2
TCR
±50ppm/°C, ±100ppm/°C
Features
Automotive (AEC-Q200)
Anti-Sulfur
Current Sense
Tolerance
±0.5%, ±1.0%
Datasheet
*Please review specification for available values within range.
Resources
Visit our resources page to learn more about out products and offerings. Access application notes, research publications, and product profiles here.
Buy from a Distributor
This product is available for purchase from distributors as the D1WKL series. Buy on DigiKey today!
WKL
Non-Wrapped Electrode General Purpose Current Sense Resistors
Our WKL series, available in various sizes, excelling in heat dissipation, low noise, tight resistance tolerance, and long-term stability. Its high-power capacity suits power modules, DC/DC converters, and motor drive modules. Differentiating from our WEL series, its unwrapped electrode design maximizes PCB space, reduces noise, and offers both short-side and long-side electrode configurations.
Characteristics
Composition
Metal Foil
Case Size(s)
0508, 0603, 0612, 0805, 0815, 0830, 1020, 1206, 1225, 1530, 1836, 2010, 2043, 2512, 4320, 4527
Terminals
2
Resistance Range
1 mOhms - 700 mOhms
Power
0.5W, 0.75W, 1W, 1.5W, 2W, 3W, 4W, 5W
TCR
±50ppm/°C, ±100ppm/°C
Tolerance
±0.5%, ±1.0%
Features
Automotive (AEC-Q200)
Anti-Sulfur
Current Sense
WKL
Non-Wrapped Electrode General Purpose Current Sense Resistors
Our WKL series, available in various sizes, excelling in heat dissipation, low noise, tight resistance tolerance, and long-term stability. Its high-power capacity suits power modules, DC/DC converters, and motor drive modules. Differentiating from our WEL series, its unwrapped electrode design maximizes PCB space, reduces noise, and offers both short-side and long-side electrode configurations.
Characteristics
Composition: Metal Foil
Case Size(s): 0508, 0603, 0612, 0805, 0815, 0830, 1020, 1206, 1225, 1530, 1836, 2010, 2043, 2512, 4320, 4527
Terminals: 2
Resistance Range: 1 mOhms - 700 mOhms
Power: 0.5W, 0.75W, 1W, 1.5W, 2W, 3W, 4W, 5W
TCR: ±50ppm/°C, ±100ppm/°C
Tolerance: ±0.5%, ±1.0%
Features:
Automotive (AEC-Q200)
Anti-Sulfur
Current Sense
Datasheet
WKL Series Specification*
*Please review specification for available values within range.
Buy from a Distributor
This product is available for purchase from distributors as the D1WKL series. Buy on DigiKey today!
| Image | Series | Distribution Series | Description | Composition | Case Size(s) | Terminals | Minimum Resistance | Maximum Resistance | TCR | Tolerance | Power | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | WRL-L4 | D1WRL-L4 | 4 Terminal Symmetrical Footprint Current Sense Resistors | Metal Foil | 1206, 2512 | 4 | 0.5 mOhms | 100 mOhms | ±30ppm/°C, ±50ppm/°C, ±75ppm/°C, ±100ppm/°C | ±0.3%, ±0.5%, ±1.0% | 0.333W, 0.5W, 1W | View Series |
 | KN | General Purpose Thin Film Resistors | Thin Film | 0201, 0402, 0603, 0805, 1206, 1210, 2010, 2512 | 2 | 2.49 Ohms | 1.5 MOhms | ±10ppm/°C, ±15ppm/°C, ±25ppm/°C, ±50ppm/°C | ±0.1%, ±0.25%, ±0.5%, ±1.0% | 0.05W, 0.063W, 0.125W, 0.1W, 0.25W, 0.5W, 0.75W | View Series | |
 | CSA | D1CSA | Ultra-Low Resistance Current Sensing Shunt | Metal Element | 2512, 3921, 5931 | 2 | 0.2mOhm | 4mOhm | ±50ppm/°C, ±70ppm/°C, ±100ppm/°C, ±125ppm/°C, ±175ppm/°C, ±200ppm/°C | ±1.0%, ±5.0% | 2W, 2.5W, 3W, 4W, 5W, 6W, 7W, 8W, 9W, 10W, 15W | View Series |
| KN-A | Automotive Grade General Purpose Thin Film Resistors | Thin Film | 0402, 0603, 0805, 1206 | 2 | 4.7 Ohms | 1.5 MOhms | ±10ppm/°C, ±15ppm/°C, ±25ppm/°C, ±50ppm/°C | ±0.1%, ±0.25%, ±0.5%, ±1.0% | 0.063W, 0.125W, 0.1W, 0.25W | View Series | |
 | WEL | D1WEL | Long Side Wrapped Electrode General Purpose Current Sense Resistors | Metal Foil | 0508, 0612, 0815, 0830, 1020, 1225, 1530, 1836, 2043 | 2 | 0.5 mOhms | 100 mOhms | ±50ppm/°C, ±100ppm/°C, ±150ppm/°C | ±0.5%, ±1.0%, ±3.0% | 1W, 1.5W, 2W, 3W, 4W, 5W | View Series |
| WEL | D1WEL | Short Side Wrapped Electrode General Purpose Current Sense Resistors | Metal Foil | 0603, 0805, 1206, 2010, 2512, 4320, 4527 | 2 | 2 mOhms | 700 mOhms | ±50ppm/°C, ±75ppm/°C, ±100ppm/°C | ±0.5%, ±1.0% | 0.5W, 0.75W, 1W, 1.5W, 2W, 3W, 4W | View Series |
| WEL | D1WEL | Automotive Grade Short Side Wrapped Electrode Current Sense Resistors | Metal Foil | 0603, 0805, 1206, 2010, 2512 | 2 | 3 mOhms | 570 mOhms | ±50ppm/°C, ±100ppm/°C | ±0.5%, ±1.0% | 0.5W, 0.75W, 1W, 1.5W, 2W | View Series |
| WEL | D1WEL | Automotive Grade Long Side Wrapped Electrode Current Sense Resistors | Metal Foil | 0508, 0612, 0830, 1020, 1225 | 2 | 1 mOhms | 100 mOhms | ±50ppm/°C, ±100ppm/°C | ±0.5%, ±1.0% | 1W, 1.5W, 2W, 3W | View Series |
 | TFA | TFA | Automotive Grade Thick Film Resistors | Thick Film | 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512 | 2 | 1 Ohms | 10 MOhms | ±100ppm/°C, ±400ppm/°C | ±0.1%, ±0.5%, ±1.0%, ±2.0%, ±5.0% | 0.063W, 0.125W, 0.1W, 0.25W, 0.5W, 0.75W, 1W | View Series |
 | TFAS | TFAS | High Grade Anti-Sulfur Thick Film Resistors | Thick Film | 0201, 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512 | 2 | 1 Ohms | 10 MOhms | ±100ppm/°C, ±400ppm/°C | ±0.5%, ±1.0%, ±5.0% | 0.05W, 0.063W, 0.125W, 0.1W, 0.25W, 0.5W, 0.75W, 1W | View Series |
 | WKL | D1WKL | Non-Wrapped Electrode General Purpose Current Sense Resistors | Metal Foil | 0508, 0603, 0612, 0805, 0815, 0830, 1020, 1206, 1225, 1530, 1836, 2010, 2043, 2512, 4320, 4527 | 2 | 1 mOhms | 700 mOhms | ±50ppm/°C, ±100ppm/°C | ±0.5%, ±1.0% | 0.5W, 0.75W, 1W, 1.5W, 2W, 3W, 4W, 5W | View Series |
 | MPC | D1MPC | Low Profile Current Sense Resistors | Metal Foil | 0201, 0402, 0603, 0805, 1206 | 2 | 1 mOhms | 50 mOhms | ±50ppm/°C, ±75ppm/°C, ±100ppm/°C, ±150ppm/°C, ±200ppm/°C | ±0.5%, ±1.0% | 0.25W, 0.333W, 0.5W, 1W | View Series |
 | MPA | D1MPA | High Power Current Sense Resistors | Metal Element | 1206, 2512 | 2 | 0.5 mOhms | 56 mOhms | ±50ppm/°C, ±75ppm/°C, ±100ppm/°C, ±150ppm/°C | ±0.5%, ±1.0% | 1W, 2W, 3W | View Series |
 | KU | Low Ohms Metal Film Resistors | Metal Film | 0201, 0402, 0508, 0603, 0612, 0805, 1020, 1206, 1210, 1225, 2010, 2512 | 2 | 10 mOhms | 10 Ohms | ±50ppm/°C, ±100ppm/°C, ±150ppm/°C, ±200ppm/°C | ±0.25%, ±0.5%, ±1.0%, ±2.0%, ±5.0% | 0.005W, 0.05W, 0.063W, 0.125W, 0.1W, 0.25W, 0.2W, 0.4W, 0.5W, 0.75W, 1W, 1.5W, 2W, 3W | View Series | |
 | CPA0612 | D1CPA0612 | 4 Terminal Automotive Grade Long Side Electrode Current Sense Resistor | Metal Foil | 0612 | 4 | 0.5 mOhms | 25 mOhms | ±50ppm/°C, ±100ppm/°C, ±150ppm/°C, ±200ppm/°C | ±0.5%, ±1.0% | 1W | View Series |
 | CPC0306 | D1CPC0306 | 4 Terminal Long Side Electrode Current Sense Resistors | Metal Foil | 0306 | 4 | 1 mOhms | 50 mOhms | ±50ppm/°C, ±100ppm/°C, ±150ppm/°C | ±0.5%, ±1.0% | 0.333W | View Series |
| KGAS | High Grade Anti-Sulfur Automotive Grade Thick Film Resistors | Thick Film | 0402, 0603, 0805, 1206, 1210, 1218, 1812, 2010, 2512 | 2 | 1 Ohms | 10 MOhms | ±100ppm/°C, ±400ppm/°C | ±0.5%, ±1.0%, ±5.0% | 0.063W, 0.125W, 0.1W, 0.25W, 0.5W, 0.75W, 1W | View Series | |
 | CPA-W | CPA-W | 4 Terminal Long Side Electrode Current Sense Resistor | Metal Foil | 1225 | 4 | 0.5 mOhms | 25 mOhms | ±50ppm/°C, ±100ppm/°C | ±0.5%, ±1.0% | 2W | View Series |
