Description

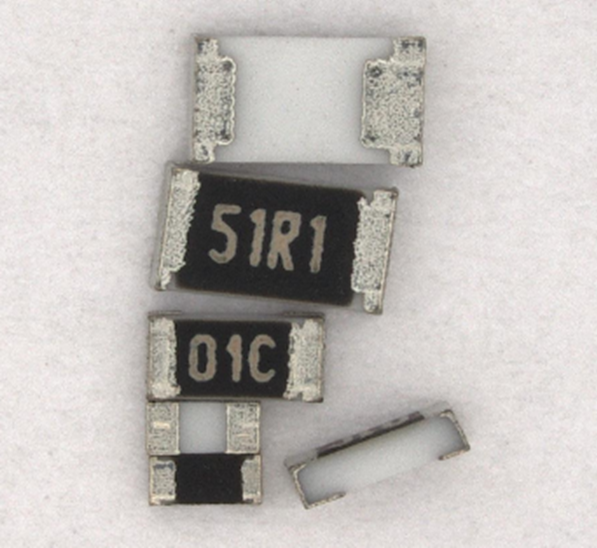

Our TF series offers excellent performance and tolerance in TCR, current noise, and linearity for high frequency circuit applications and other applications requiring precision and stability.

Features

RoHS compliant, Lead free

Electrical Characteristics

TCR

5ppm, 10ppm, 15ppm

Resistance Range

4.7 ohms - 1.5M ohms

Tolerance

0.05%, 0.1%, 0.25%, 0.5%, 1%

Power Ratings

1/10W - 1W

Mechanical Characteristics

Construction

Thin Film

Case Sizes

0402, 0603, 0805, 1206, 1210, 2010, 2512

Please See Datasheet for valid part combinations
