Description

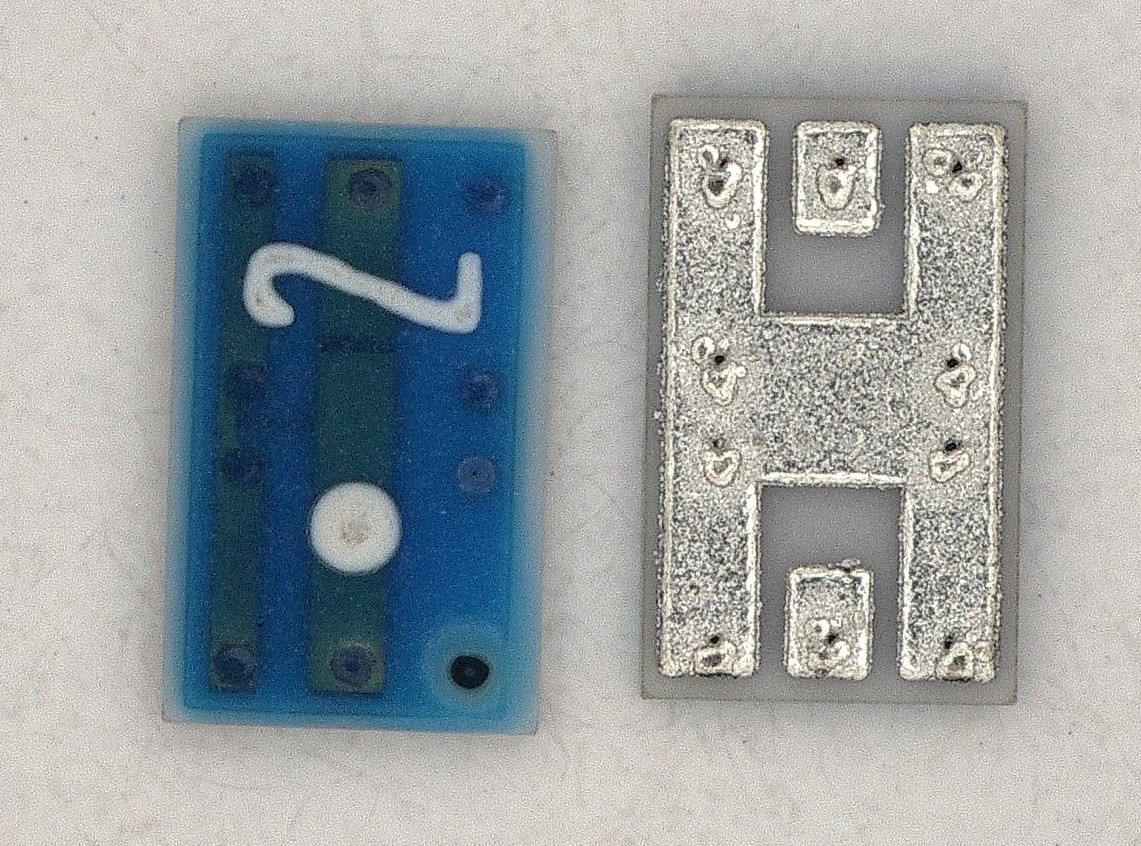

Our ATT series offers frequency performance up to 30GHz in an 0805 package.Features
RoHS compliant, Lead free
Electrical Characteristics
Frequency Range
DC - 30GHzAttenutation Tolerance
±0.5dB (DC - 20GHz); ±0.75dB (20 - 30GHz)VSWR
≤ 1.3 (DC - 20Ghz); ≤ 1.5 (20 - 30Ghz)Power Ratings
1/10WImpedance
50 ohmsAttenuation
0 - 10dBMechanical Characteristics
Construction
Thin FilmCase Sizes
0805Datasheet
*Please see datasheet for valid part combinations
Datasheet
*Please see datasheet for valid part combinations
Related Series
Our ATT series offers frequency performance up to 30GHz in an 0805 package. Our PAT series provides an attenuation offering of 0-20dB in precision thin film construction. Our ATV0805C is a temperature variable attenuator with frequency performance up to 3GHz. Our ATV0805J is a temperature variable attenuator with frequency performance up to 10GHz.Purchase Image Title Summary Construction Case Sizes frequency_range Attenuation Values Attenuation Tolerance VSWR Power Ratings Impedance Features ATT Series Thin Film 0805 0 - 10dB ±0.5dB (DC - 20GHz); ±0.75dB (20 - 30GHz) ≤ 1.3 (DC - 20Ghz); ≤ 1.5 (20 - 30Ghz) 1/10W 50 ohms RoHS compliant, Lead free
PAT Series Thin Film 0402, 0603, 0805, 1206, 1712 0 - 20dB 0.3dB - 1dB >1.2 - >1.5 32mW - 250mW 50 ohms, 75 ohms RoHS compliant, Lead free
ATV0805C Series Thin Film 0805 1 - 10dB 0.5dB < 1.3 1/16W 50 ohms RoHS compliant, Lead free
ATV0805J Series Thin Film 0805 1 - 6dB 0.5dB (DC-3GHz); 1.0dB (3GHz-10GHz) >1.3 (DC to ≤3GHz); >1.5(>3GHz to ≤7GHz); >1.8(>7GHz to 10GHz) 1/16W 50 ohms RoHS compliant, Lead free
