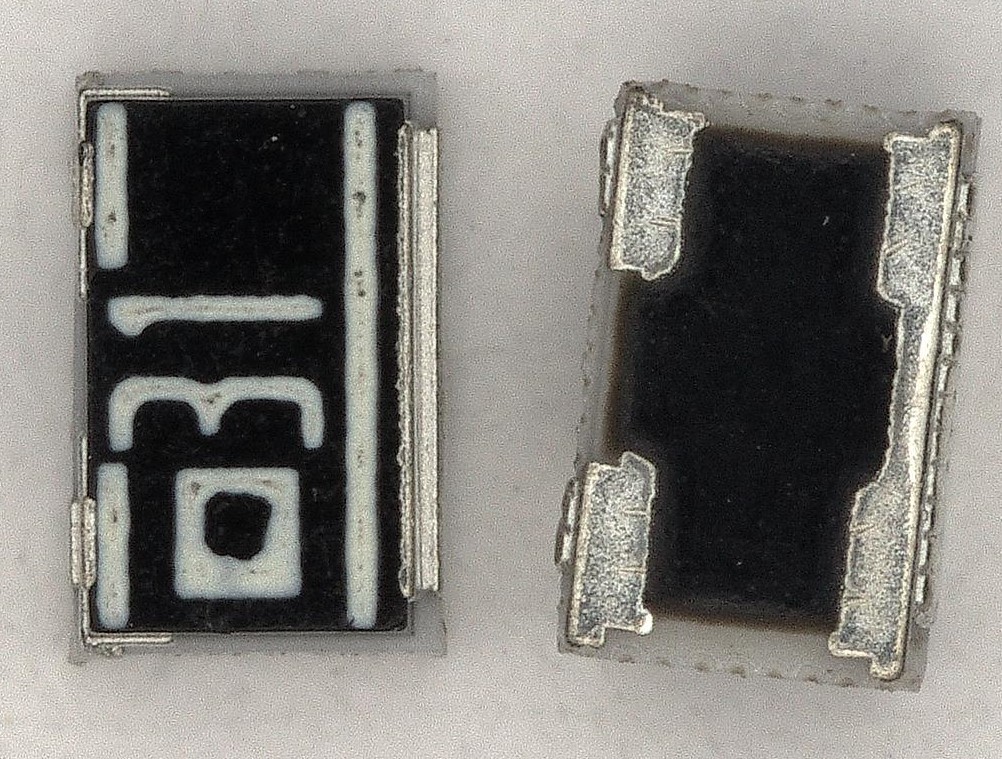

ATV0805C Series

Description

Our ATV0805C is a temperature variable attenuator with frequency performance up to 3GHz.

Features

RoHS compliant, Lead free

Electrical Characteristics

Frequency Range

DC - 3GHz

Attenutation Tolerance

0.5dB

VSWR

< 1.3

Power Ratings

1/16W

Impedance

50 ohms

Attenuation

1 - 10dB

Mechanical Characteristics

Construction

Thin Film

Case Sizes

0805

Datasheet

h

*Please see datasheet for valid part combinations

Datasheet

h

*Please see datasheet for valid part combinations
